Have you ever wondered how the invisible energy powering your building is measured accurately? While often ignored, a gas meter is a precision tool that safeguards your budget and safety. This guide explores how these devices function, the various technologies available, and how to manage them effectively.
● Mechanical Precision: Standard meters use physical chambers and flexible diaphragms to capture specific volumes of gas for billing accuracy.
● Diverse Technology: Systems range from traditional residential diaphragm models to high-capacity rotary and turbine meters for industrial use.
● Smart Integration: Modern smart meters allow for wireless data transmission, real-time monitoring, and improved leak detection.
● Safety First: Keeping the area around the meter unobstructed and scheduling professional installations are critical for operational safety.
● Consumer Control: Regularly reading and monitoring your meter helps identify usage spikes and ensures utility billing transparency.
At its heart, a gas meter functions as a flow counter. Most residential units operate on the principle of positive displacement. This means the device measures gas by filling and emptying internal compartments of a known volume.
This principle relies on the physical movement of gas to drive a counting mechanism. As gas enters the meter, it creates a pressure difference that forces internal components to move. Because each movement represents a fixed amount of gas, the meter provides a highly reliable record of consumption.
The process begins when gas enters the meter's inlet. It flows into a series of chambers separated by flexible diaphragms. As one chamber fills, the diaphragm expands, pushing gas out of a second chamber toward the outlet. This rhythmic "breathing" cycle continues as long as a gas-powered appliance is running downstream.
To turn this physical expansion into a readable number, the diaphragms connect to a crankshaft. This shaft converts the back-and-forth movement into a rotary motion. This rotation drives a series of gears linked to the pointers or digital digits on the meter's face, recording the total volume passed through the system.
Modern units are engineered to maintain integrity across different flow rates. They use advanced flexible materials that resist wear over years of constant use. Furthermore, internal calibration ensures the meter adapts to changing pressure conditions, so the volume recorded remains precise whether you are running a single pilot light or a full industrial furnace.
Note: Even small residential meters are calibrated to detect very low flow rates, ensuring every cubic foot of gas is accounted for.
Not every building uses gas the same way. The technology inside a gas meter varies based on the volume of gas needed and the pressure of the supply line.
Meter Type | Best Application | Primary Mechanism |
Diaphragm | Residential / Small Commercial | Flexible diaphragms and chambers |
Rotary | Industrial / High-Demand Commercial | Revolving lobes forming gas pockets |
Turbine | Power Plants / Large Industries | Rotating internal turbine blades |
Ultrasonic | Smart Homes / Modern Civil Sector | High-frequency sound waves |
For large-scale gobbling systems and industries, turbine gas meters are the standard. They measure the velocity of the gas to determine volume. In specialized ex-industrial setups, thermal mass gas meters are used. These calculate flow by measuring heat loss as gas passes over a heated sensor, which is effective for monitoring gas density changes.
Tip: Facilities managers, choosing a rotary meter over a diaphragm model is often necessary if your equipment operates under high-pressure conditions.

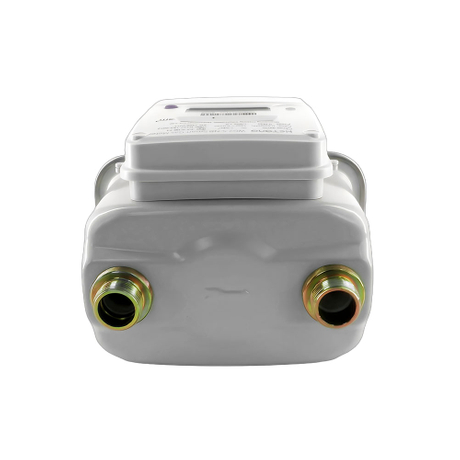

The transition from mechanical to digital has revolutionized how we interact with energy. A smart gas meter differs from traditional models by incorporating electronic components and communication modules.
● Wireless Data Transmission: These devices use secure wireless standards to send usage data directly to the utility company.
● Real-Time Monitoring: You can view your current consumption through web portals or mobile apps, allowing for immediate adjustments to energy habits.
● Enhanced Safety: Smart sensors can detect unusual flow patterns that might indicate a leak or appliance malfunction, often triggering automated alerts.
● Billing Accuracy: Because the data is sent automatically, there is no need for estimated bills or physical inspections by meter readers.
Installing a gas meter is a critical task that must adhere to strict safety codes. It is not a DIY project; only trained professionals should handle the setup to ensure compliance and prevent hazards.
1. Site Inspection: Technicians identify a safe, accessible area that meets local codes.
2. Supply Line Connection: The meter is aligned and sealed to the gas line using specialized fittings to prevent leaks.
3. Pressure Testing: Installers use gauges to verify the system can hold pressure without any gas escaping.
4. Calibration and Activation: The meter is "initialized," especially smart models that must sync with the utility network.
Note: Professional installers use specialized tools like adjustable torque wrenches to ensure fittings are tight enough to seal but not so tight that they damage the threads.
Understanding your gas meter display helps you verify your monthly bill and monitor your energy budget.
Digital meters are straightforward; you read the numbers from left to right, usually ignoring the red digits or those after the decimal. Dial meters are more complex. They feature several small clocks that rotate in opposite directions.
When reading a dial meter, always record the dials from left to right. If the hand is between two numbers, take the lower number. If the hand sits directly on a number, check the dial to its right; if that dial hasn't passed zero, the previous number is still the correct reading.
Tip: Take a photo of your meter on the same day your billing cycle ends to provide evidence in case of a billing discrepancy.
Maintaining your gas meter ensures it stays accurate and safe for years. While the utility company owns the meter, you are responsible for the area around it.
● Keep it Clear: Do not pile snow, leaves, or trash around the meter. Overgrown plants should be trimmed back to allow technician access.
● Visual Checks: Regularly look for rust, corrosion, or cracks on the pipes and fittings.
● Environmental Protection: In winter, carefully clear ice and snow to prevent stress on the pipes.
● Detecting Leaks: Listen for hissing sounds and stay alert for the "rotten egg" smell added to natural gas.
If you suspect a leak, leave the area immediately. Do not use phones, light matches, or touch electrical switches near the suspected leak, as a spark could trigger an explosion. Call emergency services once you are a safe distance away.
Monitoring the flow through your gas meter provides a roadmap for saving money. By tracking when flow is highest—such as during winter heating peaks—you can make informed choices about your thermostat settings.
Erratic or unexpectedly high flow readings are often the first sign that an appliance, like a water heater or furnace, is failing. Addressing these efficiency drops early makes your appliances last longer and reduces your total energy footprint. Whether through better home insulation or upgrading to energy-efficient models, the data from your meter empowers you to take control.
Understanding the mechanics of your gas meter is essential for any modern energy consumer. These precision-engineered tools do more than just record volume; they ensure billing transparency and provide early warnings for system malfunctions. By recognizing how different technologies like diaphragm or rotary systems work, you can better manage your facility's unique demands. The hetongxinxitech team provides high-quality measurement solutions that prioritize accuracy and long-term durability. Their products offer exceptional value by integrating advanced materials with modern monitoring capabilities. Trusting professional maintenance and staying proactive with safety checks will ensure your system remains reliable year-round.
A: It uses flexible internal chambers that fill and empty with gas. This movement drives a mechanical counter to record the gas meter volume accurately.
A: First, re-verify the digits on your gas meter. If the discrepancy remains, compare it with previous bills and contact your utility provider with photo evidence.
A: While both are precise, a smart gas meter improves accuracy by eliminating manual reading errors and providing real-time data to detect inefficiencies or leaks.
A: Keeping the area around a gas meter clear ensures technicians can access it quickly during emergencies and prevents damage from moisture or debris.
