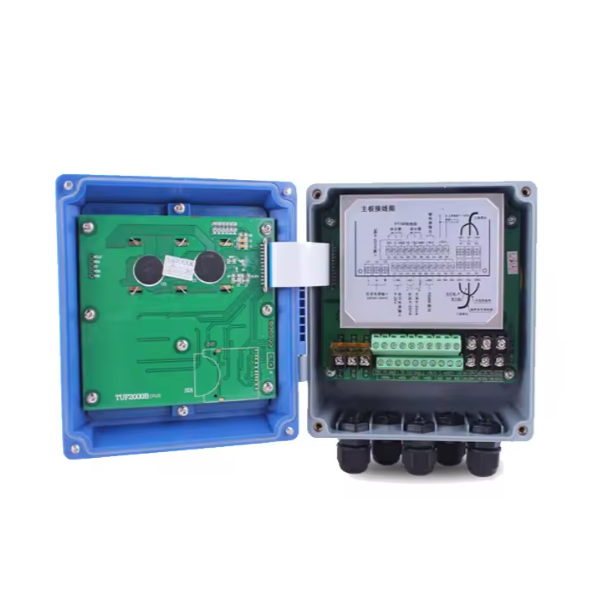

High-Precision Clamp-On Ultrasonic Flow Meter

Name: High-Precision Clamp-On Ultrasonic Flow Meter
Brand: HETONG
Rating: 5.0 (11 reviews)

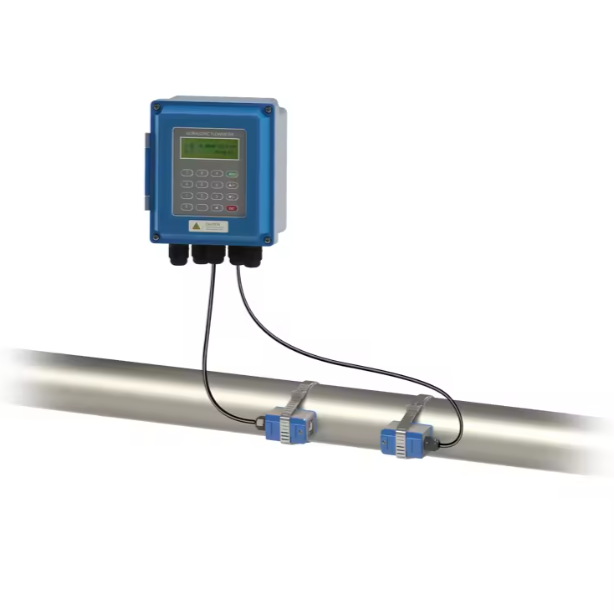

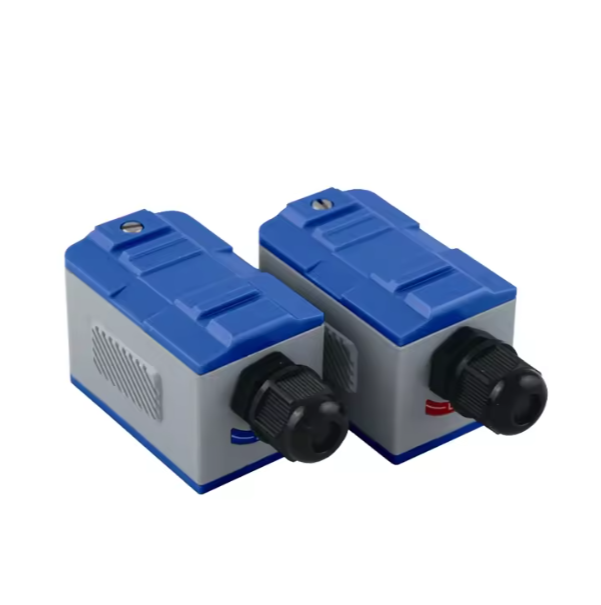

The external clip sensor can be pasted on thesurface of the pipe to complete the measurementof all kinds of liquid, without breaking the pipeand cutting off the flow, and the installation isconvenient and fast.

Availability:

Quantity:



Inquire Add to Basket

Model:
HTC
Brand:
HETONG

Product Description

Accuracy	±1%
Velocity range	0 ~ + 10m / s, forward and backward measurement
Pipe diameter	DN15~DN6000
Fluid temperature	-30C~160C
Fluid type	Water, sea water, sewage, acid and alkali, alcohol, beer, various oils and other single uniform liquids that can conduct ultrasonic waves
Pipe material	All dense pipes such as steel, stainless steel, cast iron, copper, PVC, aluminum, and glass fiber reinforced plastics are allowed to be lined
Signal output	1 Channel 4 ~ 20mA current output impedance 0 ~ 1K, accuracy 0.1%, 1 channel OCT pulse output pulse width 6 ~ 1000ms1 relay output
Signal input	3 channels of 4 ~ 20mA current input can be used as data collector to connect three wire PT100 platinum resistance to realize heat measurement
Communication interface	Isolate RS485 serial interface and support Modbus protocol
Data storage	SD card regularly stores the set parameters and measurement results (optional)
Power supply mode	DC8 ~ 36V or AC85 ~ 264V

type

ultrasonic flow meter

place of origin

shandong, China

model number

TUF-2000B

brand name

HETONG

customized support

OEM, ODM

warranty

1 years

Product Name

ultrasonic flow meter

Pipe size

DN15~DN6000

Application

Single homogeneous liquid that can conduct ultrasonic waves

Flow rate range

0~±10m/s

Fluid temperature

-30°C~160°C

Pipe material

All dense pipes such as steel, stainless steel, cast iron, copper, PVC

Power supply

DC8~36V/AC85~264V

Data storage

SD card regularly stores the set parameters and measurement results

Communication Interface

Isolated RS485 serial interface, supports MODBUS protocol.

Protection level

IP68

Clamp-on ultrasonic flow meter External ultrasonic flow meter Non-invasive ultrasonic flow meter High precision (±0.5% ~ ±1.5%) Municipal water supply Wireless data transmission Doppler ultrasonic flow meter Dual-channel ultrasonic flow meter Industrial process control Bi-directional measurement
