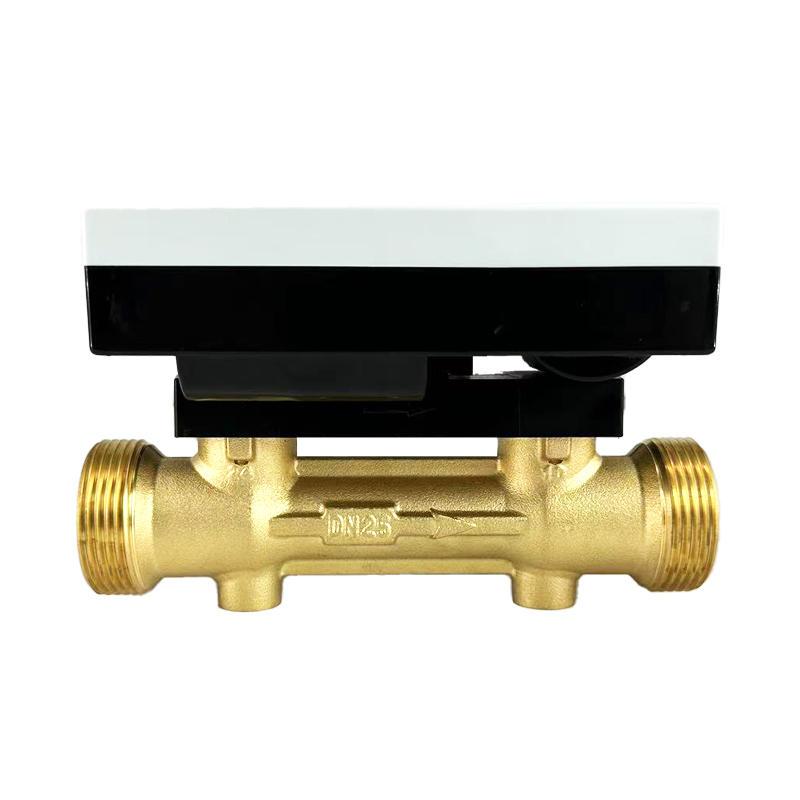

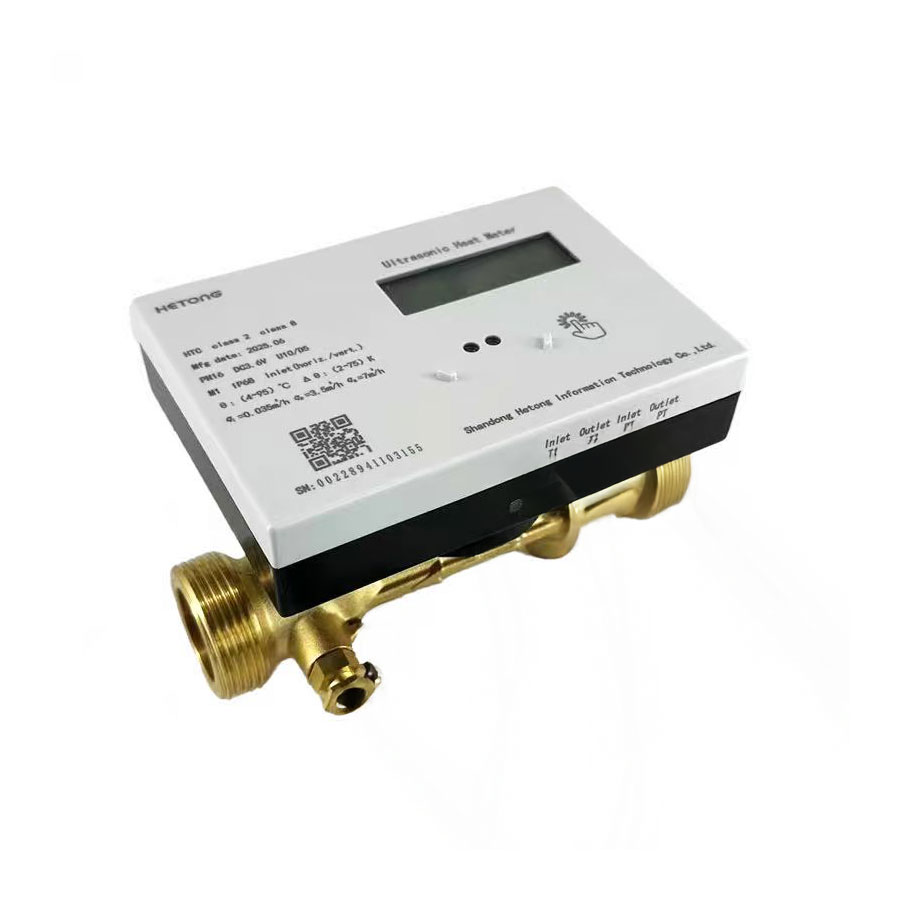

Our DN15-DN40 ultrasonic heat meter is a cutting-edge smart metering solution designed specifically for residential HVAC and district heating systems. Built with industry-leading ultrasonic metering technology and ultra-low power consumption control architecture, this residential HVAC ultrasonic heat meter delivers real-time, high-precision data acquisition of flow rate, supply and return water temperature, and thermal energy consumption for clients in the heating and building management sectors. Equipped with multi-functional alarm systems and optional IoT communication modules, it empowers heating operators, property managers, and real estate developers to achieve scientific, data-driven dynamic management of heating usage, drastically improving operational efficiency, reducing energy waste, and elevating end-user service quality. As a Class 2 ultrasonic heat meter, it fully complies with international metering standards, making it a reliable choice for large-scale residential heating projects and commercial HVAC retrofits.

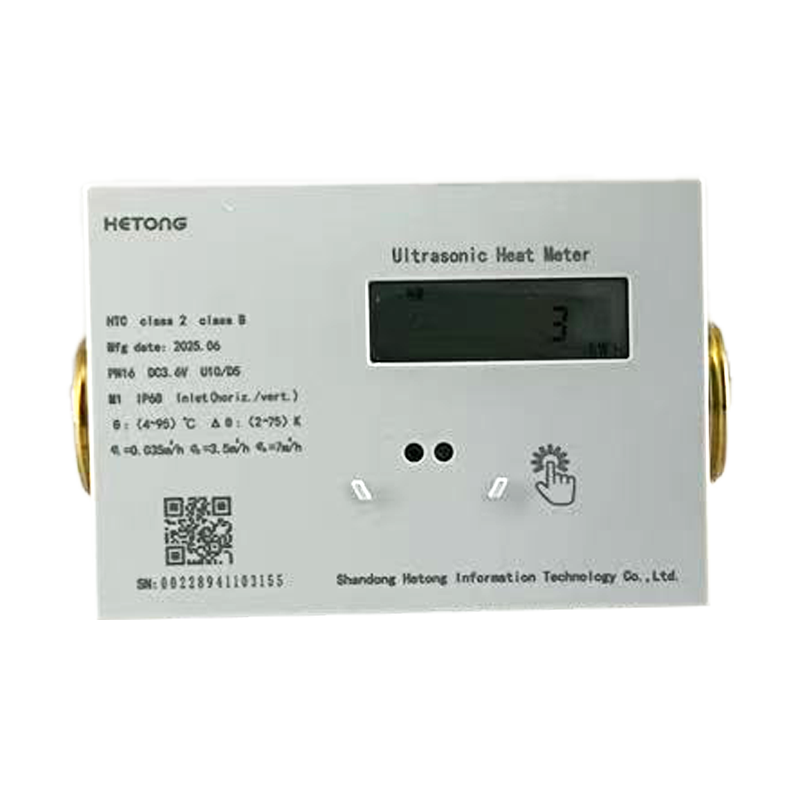

Adopting high-sensitivity PT1000 temperature sensor ultrasonic heat meter technology, it achieves 0.01℃ temperature resolution, paired with 0.01m³ flow resolution and 1kWh heat resolution for unrivaled metering accuracy. This heating and cooling dual-purpose ultrasonic heat meter supports bidirectional metering of both heating and cooling energy consumption, with an 8-digit LCD display showing cumulative energy, thermal power, inlet/return water temperature, temperature difference, flow data, and alarm records for full visibility of system performance.
Engineered with an optimized ultra-low power consumption circuit design, this 10-year lifespan ultrasonic heat meter is powered by a DC 3.6V lithium battery, delivering a continuous service life of over 10 years without frequent battery replacement, drastically reducing long-term maintenance costs for project operators. It also features built-in low battery alarm and sensor abnormality alarm functions, ensuring uninterrupted, reliable operation throughout its service life.
This horizontal vertical mounting ultrasonic heat meter supports both horizontal and vertical installation, with a multi-angle adjustable display for easy reading in complex installation spaces. With a IP68 waterproof ultrasonic heat meter protection rating, it is fully dust-tight and submersible, making it suitable for harsh installation environments including basements, pipe wells, and high-humidity mechanical rooms, with a maximum working pressure of 1.6MPa to adapt to various HVAC system pressures.
The meter offers flexible communication options including M-Bus, NB-IoT, and 4G, making it a highly versatile NB-IoT ultrasonic heat meter for smart heating systems. It enables automatic data upload to a cloud-based operation management platform, supporting remote meter reading, fault monitoring, and energy consumption analysis, eliminating the need for manual on-site meter reading and enabling efficient centralized management for heating utilities and property management companies.
Performance | Core Parameters |
Accuracy Class | Class 2 |
Nominal Diameter | DN15 ~ DN40 |
Temperature Measurement Range | 4℃ ~ 95℃ |
Temperature Difference Range | 2K ~ 75K |
Flow Resolution | 0.01m³ |
Heat Resolution | 1kWh |
Temperature Resolution | 0.01℃ |
Max. Working Pressure | 1.6MPa |
Ambient Temperature Range | -25℃ ~ 55℃ |
Power Supply | DC 3.6V Lithium Battery |
Design Service Life | ≥10 Years |
Protection Rating | IP68 |
Optional Communication | M-Bus / NB-IoT / 4G |
Flow Data
Nominal Diameter DN(mm) | Range Ratio | qs（m³/h） | qp（m³/h） | qi（m³/h） |
15 | 100 | 3.0 | 1.5 | 0.015 |
20 | 5.0 | 2.5 | 0.025 | |
25 | 7.0 | 3.5 | 0.035 | |
32 | 12 | 6.0 | 0.06 | |
40 | 20 | 10 | 0.1 |

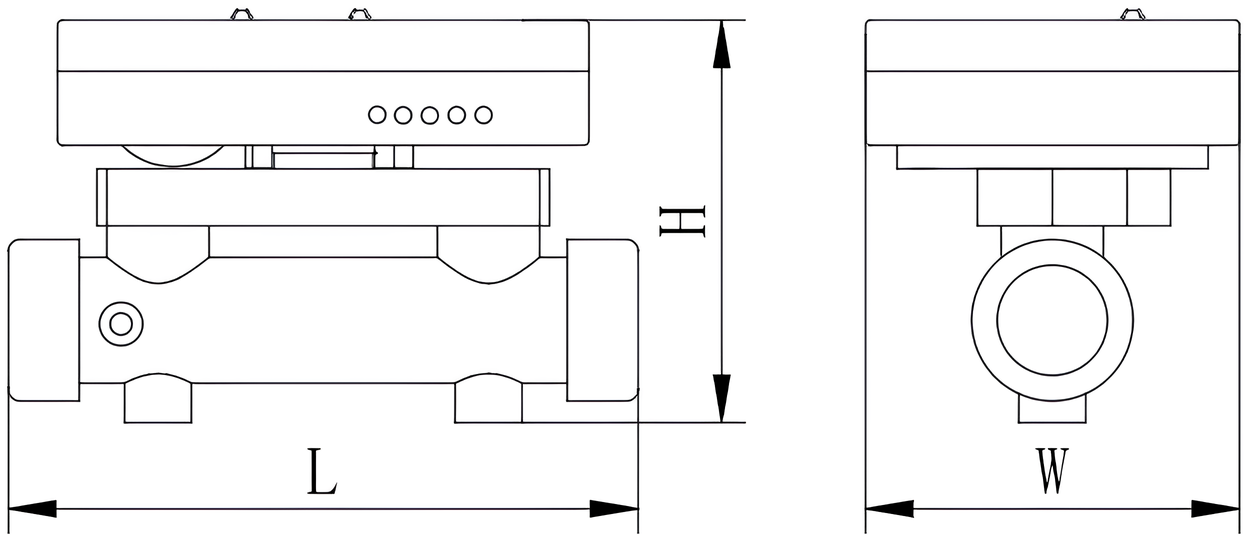

Produt Size
Nominal diameter DN（mm） | DN15 | DN20 | DN25 | DN32 | DN40 |
L（mm） | 135 | 135 | 160 | 180 | 200 |
W（mm） | 100 | 100 | 100 | 100 | 100 |
H（mm） | 92 | 100 | 100 | 110 | 118 |
Thread | G3/4B | G1B | G1 1/4B | G1 1/2B | G2B |
Installation Diagram
This DN15-DN40 ultrasonic heat meter for residential HVAC is tailored for clients across the heating, construction, and property management sectors, with core application scenarios including:
District heating utilities and thermal energy management companies seeking smart metering and remote management solutions for large-scale residential heating networks
Real estate developers and construction contractors for new residential building HVAC system installations and high-end community heating retrofits
Property management companies and facility management service providers for residential community heating metering, billing, and energy efficiency management
HVAC system integrators and engineering firms for commercial and residential heating and cooling system upgrades and energy-saving retrofits
Looking for a reliable, high-performance smart ultrasonic heat meter for your residential HVAC or district heating project? We offer customizable communication configurations, bulk wholesale pricing, and full technical support for clients worldwide. Contact us today to request a free product datasheet, sample quotation, or to discuss your project-specific metering requirements – our engineering team is ready to deliver a tailored thermal energy metering solution for your business.
