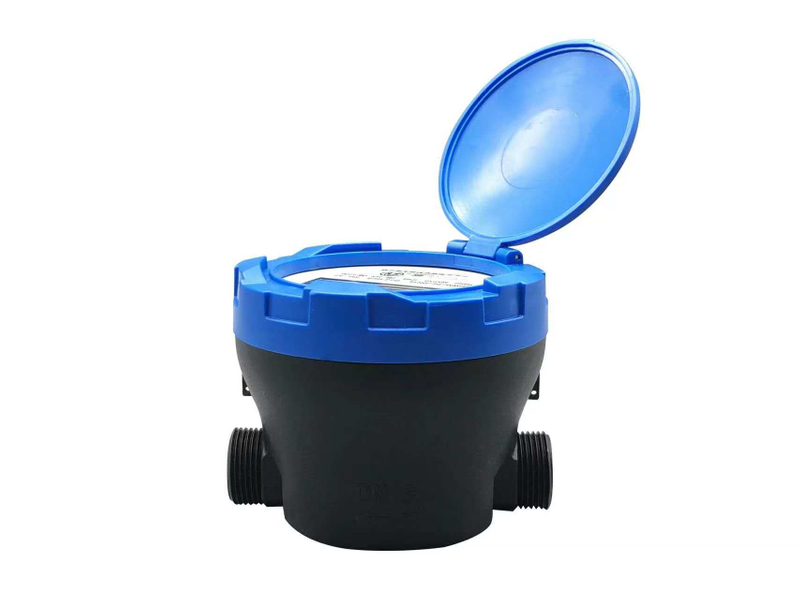

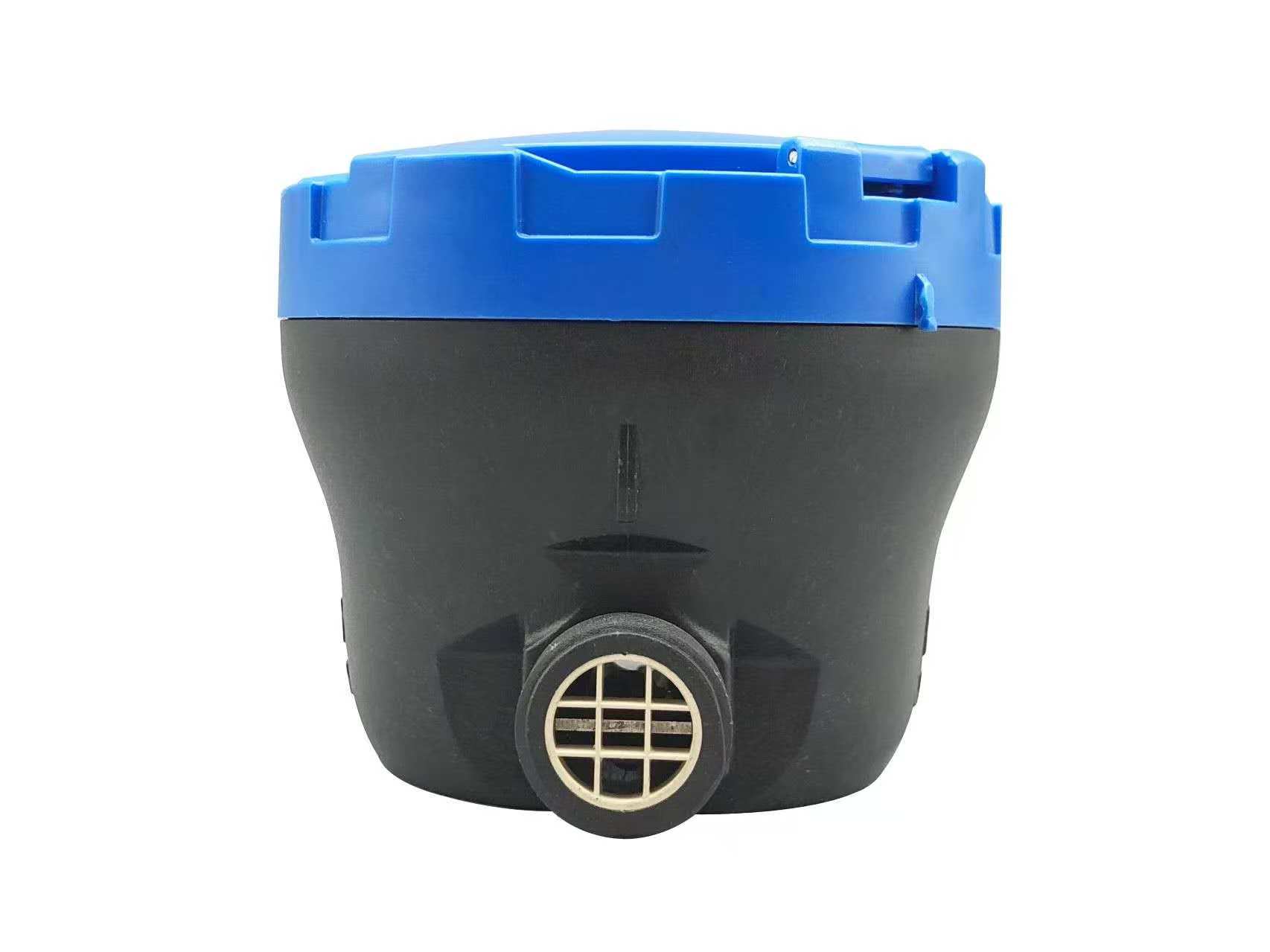

Wide Range R400 Ultrasonic Water Meter for Water Supply

Product Overview

Our wide range R400 ultrasonic water meter is a next-generation smart metering solution engineered for municipal water supply, residential water management, and water resource conservation projects. Utilizing advanced time-difference ultrasonic measurement technology, this DN15-DN40 ultrasonic water meter calculates water flow velocity by detecting the propagation difference of ultrasonic signals in water, eliminating the need for mechanical impellers and moving parts that plague traditional mechanical water meters. Designed exclusively for clients in the water supply and construction industries, it solves core industry pain points including small flow undercounting, mechanical wear, high maintenance costs, and low metering accuracy. With a maximum range ratio of up to R500, MID certified ultrasonic water meter compliance, and full smart connectivity, it is the ideal choice for smart water system upgrades, large-scale residential projects, and municipal water supply network modernization.

Key Features & Core Advantages

Industry-Leading Wide Range Ratio & Ultra-Precise Micro-Flow Metering

This R400 R500 wide range ratio water meter delivers an industry-leading range ratio of up to R500, with a minimum starting flow rate as low as 0.005m³/h, enabling accurate measurement of even micro water drops. It eliminates the long-standing "small flow undercounting" issue of traditional mechanical meters, with U0/D0 flow sensitivity ultrasonic water meter technology that is unaffected by flow field disturbances, ensuring consistent Class 2 accuracy across the entire flow range. It supports bidirectional flow measurement, with 0.001L calibration resolution for unrivaled metering precision, helping water utilities reduce non-revenue water (NRW) and improve revenue recovery.

Zero Mechanical Wear & Low Total Cost of Ownership

With no moving parts or mechanical impellers, this no mechanical wear ultrasonic water meter has zero risk of mechanical abrasion, jamming, or performance degradation over time, drastically reducing maintenance and replacement costs for operators. It features an ultra-low power consumption design with a built-in DC 3.6V lithium battery, delivering a continuous service life of over 10 years, with low pressure loss that reduces water supply system energy consumption. It also integrates intelligent functions including leakage detection, low voltage alarm, and tamper-proof monitoring, ensuring long-term stable operation with minimal on-site maintenance.

Full-Environment Adaptability & Global Compliance

This IP68 waterproof ultrasonic water meter features a fully sealed IP68 protection rating, making it dust-tight and permanently submersible, suitable for harsh installation environments including underground pipe wells, high-humidity basements, and outdoor municipal pipe networks. It operates reliably in ambient temperatures from -25℃ to 70℃ with 100% humidity tolerance, and is fully compliant with EU MID certification, meeting international metering standards for global project deployment. It supports full-angle installation, with no strict straight pipe requirements, making it easy to install in tight spaces.

Multi-Mode Smart Communication for Smart Water Management

The meter offers a full range of optional communication protocols including Modbus, RS485, NB-IoT, 4G-Cat.1, OCT Pulse, and 4-20mA, making it a highly versatile NB-IoT smart ultrasonic water meter for modern smart water systems. It seamlessly integrates with cloud-based water management platforms, enabling remote automatic meter reading, real-time leakage monitoring, consumption data analysis, and centralized billing management. It eliminates manual meter reading costs, improves operational efficiency, and enables data-driven water resource management for water utilities and municipal authorities.

Technical Specifications

Flow Data

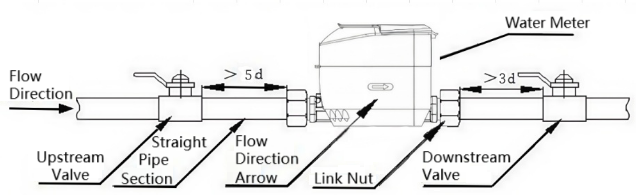

Installation Diagram

c

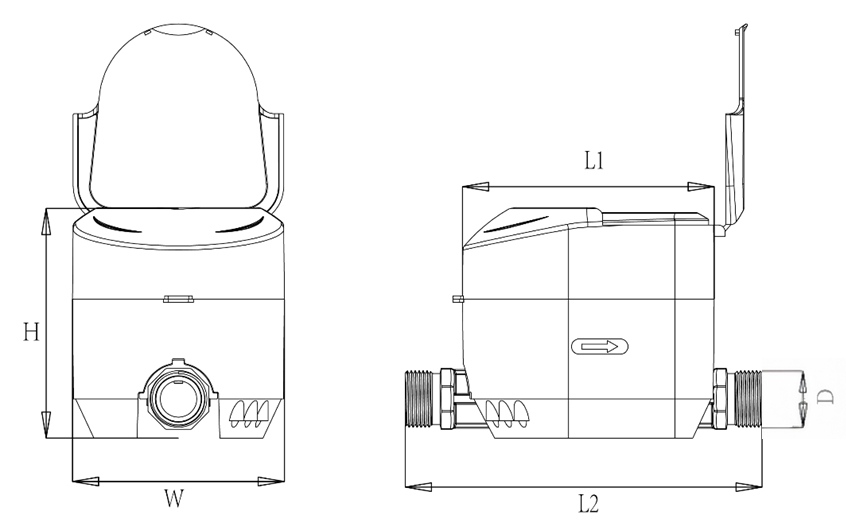

Product Size

Target Applications

This residential and municipal ultrasonic water meter is purpose-built for clients in the water supply, municipal engineering, and construction sectors, with core application scenarios including:

Municipal water supply bureaus and water utility companies seeking to reduce non-revenue water and upgrade to smart water metering networks

Real estate developers and construction contractors for new residential and commercial building water supply system installations

Water resource management authorities and environmental protection agencies for water consumption monitoring and conservation projects

Smart water system integrators and municipal engineering firms for water supply network retrofits and digital water management system deployments

Call to Action

Looking for a high-precision, low-maintenance wide range ultrasonic water meter for your municipal water supply or residential building project? We offer customizable range ratio options, communication protocol configurations, bulk wholesale pricing, and full after-sales technical support for global clients. Contact us today to download the full product datasheet, request a free sample, or discuss your project-specific smart water metering needs – our team is ready to help you optimize your water management efficiency and reduce operational costs.
