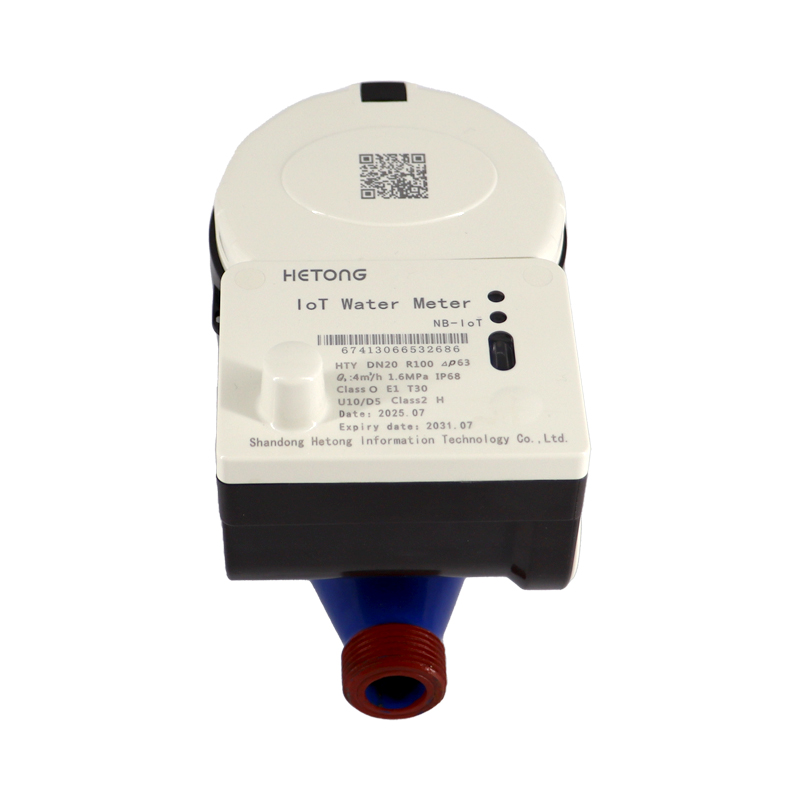

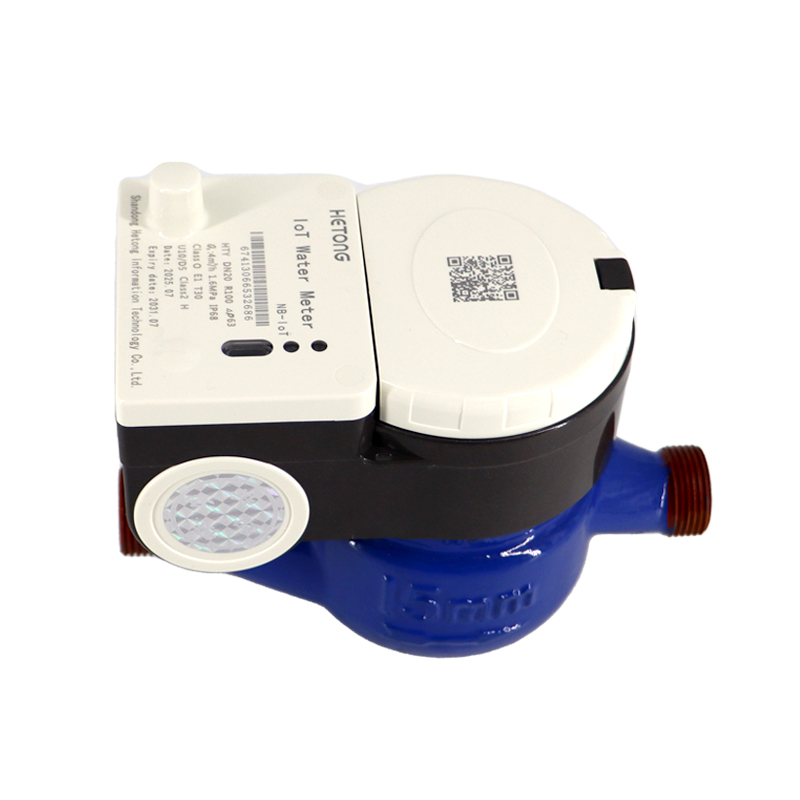

The IoT Water Meter represents the next generation of water measurement technology, combining precise ultrasonic flow measurement with advanced connectivity features to enable smart water management. This innovative device integrates ultrasonic measurement technology with multiple communication protocols, including LoRaWAN, M-BUS, RS-485, and NB-IoT, allowing seamless integration into smart city infrastructure and remote monitoring systems. Designed to meet ISO 4064:2014 and OIML R 49-2013 standards, the IoT water meter provides accurate consumption data while enabling real-time monitoring, remote configuration, and data-driven decision making. Equipped with a high-capacity 9000 mAh lithium battery, the meter delivers reliable operation for 6 to 8 years under normal conditions, making it an ideal solution for modern water utilities, property managers, and industrial facilities seeking to optimize water usage, reduce operational costs, and enhance customer service.
The IoT water meter offers flexible communication choices including LoRaWAN, M-BUS, RS-485, and NB-IoT protocols, enabling seamless integration into existing smart systems or new IoT infrastructure. This versatility allows water management teams to select the most appropriate connectivity method based on coverage, data requirements, and existing infrastructure.
Capable of storing 1 year of daily data and up to 24 months of historical records, the meter ensures continuous data availability even during temporary communication interruptions. The customizable data storage mode allows adaptation to specific monitoring requirements, from high-frequency sampling for leak detection to standard interval recording for billing purposes.
Complying with PD CEN/CLC/TS 17880:2022 standards for smart meter security, the IoT water meter incorporates robust data encryption and authentication protocols to protect against unauthorized access and tampering. This ensures the integrity and confidentiality of consumption data throughout transmission and storage.
With an IP68 rating for water and dust resistance, the meter withstands harsh environmental conditions, both indoors and outdoors. The device is engineered for a service life of 12 years or more, providing long-term performance with minimal replacement requirements.
The high-capacity lithium battery delivers extended operation, with power consumption optimized for periodic data transmission (typically once per day). Power outage protection ensures that accumulated flow data and timestamps are preserved, with automatic recovery of metering functions when power is restored.
Integral to smart city initiatives, these meters form part of intelligent water grids that monitor network performance, detect leaks, and optimize water distribution in real-time, reducing waste and improving system efficiency.
Ideal for rural or difficult-to-access locations, the IoT water meter enables remote data collection without the need for physical meter readings, reducing operational costs and improving data collection frequency.
Property managers of apartment buildings and housing developments use IoT water meters to implement accurate sub-metering, enable remote billing, and quickly identify leaks or abnormal consumption patterns in individual units.
In commercial areas, these smart meters provide detailed consumption data for businesses, helping them implement water conservation measures, manage costs, and meet sustainability goals through data-driven decisions.
Water utilities leverage the advanced capabilities of IoT water meters to improve customer service, detect network leaks before they cause damage, optimize meter reading routes, and implement more accurate, timely billing systems.
IoT water meters comply with PD CEN/CLC/TS 17880:2022 security standards, incorporating end-to-end encryption, secure authentication protocols, and tamper detection mechanisms. These features ensure that consumption data remains confidential and protected from unauthorized access or manipulation.
The meter continues to record consumption data internally, storing up to 24 months of historical records. Once communication is restored, the stored data is transmitted to the central system, ensuring no information is lost during temporary connectivity interruptions.
The high-capacity 9000 mAh lithium battery provides 6 to 8 years of operation under normal conditions (with daily data transmission). When replacement is needed, the meter is designed for easy battery access, allowing maintenance personnel to replace the battery without removing the entire meter from the pipeline.
Yes, advanced IoT water meters include leak detection capabilities by monitoring for abnormal flow patterns, such as continuous low flow rates that indicate potential leaks. Alerts can be automatically sent to water management systems or personnel for prompt investigation and repair.
These smart meters support standard communication protocols and data formats that can be integrated with most existing billing software through APIs or middleware. This allows water utilities to implement smart metering without completely replacing their current billing infrastructure.
Technical Specifications
Performance | Parameters |
Accuracy class | Class 2 |
Nominal diameter | DN15~DN25 |
Range Ratio（optional） | R100/R125 |
Max.working pressure and pressure loss | 1.6MPa ΔP63 |
Working environment | Temperature：-25℃~70℃；Humidity≤100% |
Temperature Class | T30 |
Flow profile sensitivity | U10/D5 |
Climatic ambient conditions | O |
Electormagnetic class | E1 |
Output(optional) | NB-IoT/ 4G-Cat.1 |
Power supply | DC3.6V Lithium Battery |
Material(optional） | Copper/Ductile Iron |
Protection class | IP68 |
Flow Data
Nominal diameter（DN）mm | Q3 /Q1 | Q4 | Q3 | Q2 | Q1 |
m3/h | |||||
15 | 100 | 3.125 | 2.5 | 0.04 | 0.025 |
125 | 0.032 | 0.020 | |||
20 | 100 | 5 | 4 | 0.064 | 0.04 |
125 | 0.051 | 0.032 | |||
25 | 100 | 7.875 | 6.3 | 0.101 | 0.063 |
125 | 0.081 | 0.050 | |||

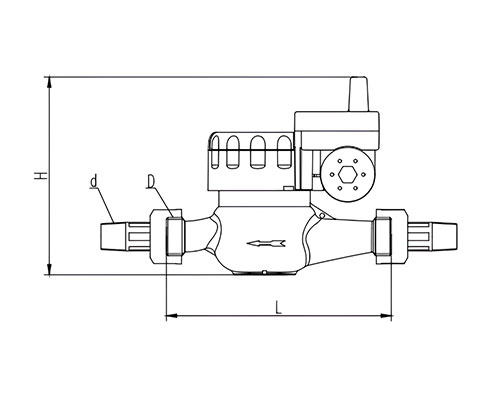

Produt Size
Nominal diameter (DN) mm | L mm | B mm | H mm | D | d |
15 | 165 | 91 | 134 | G3/4B | R1/2 |
20 | 195 | 91 | 134 | G1B | R3/4 |
25 | 225 | 94 | 142 | G1 1/4B | R1 |

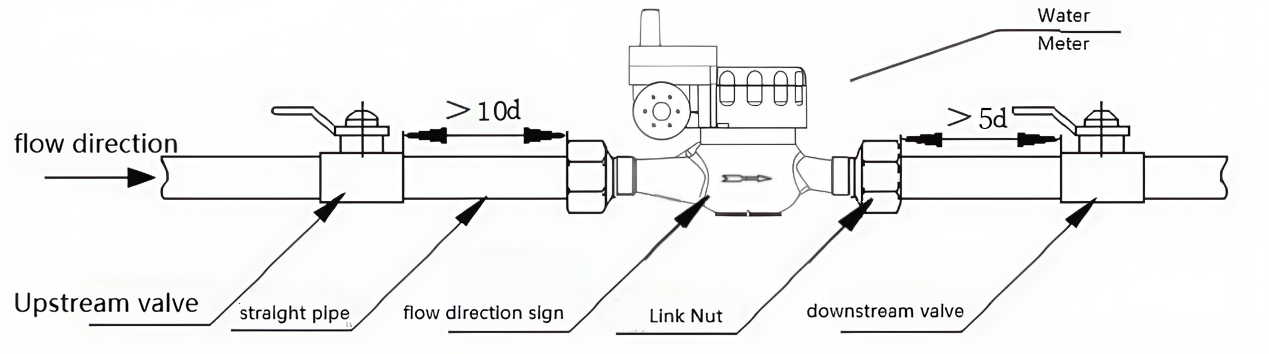

Installation Diagram
